EM10 2025 - ELECTRIC ALLOY BIKE

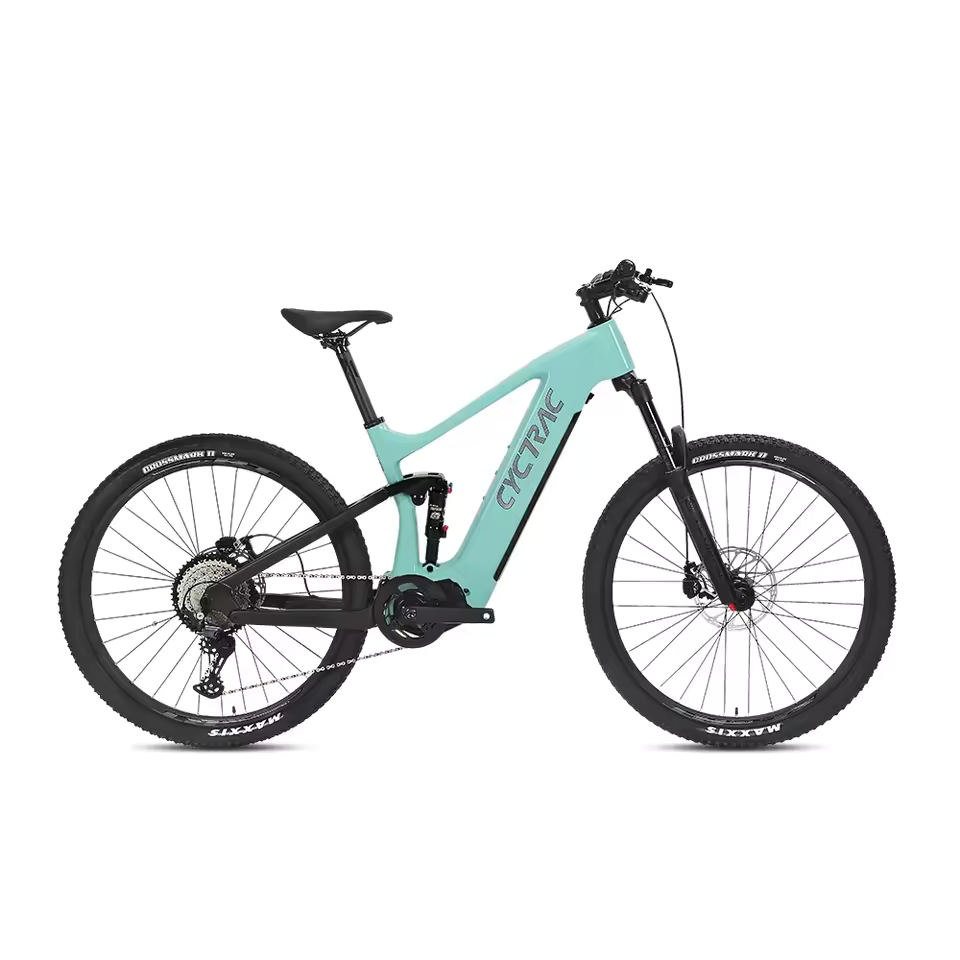

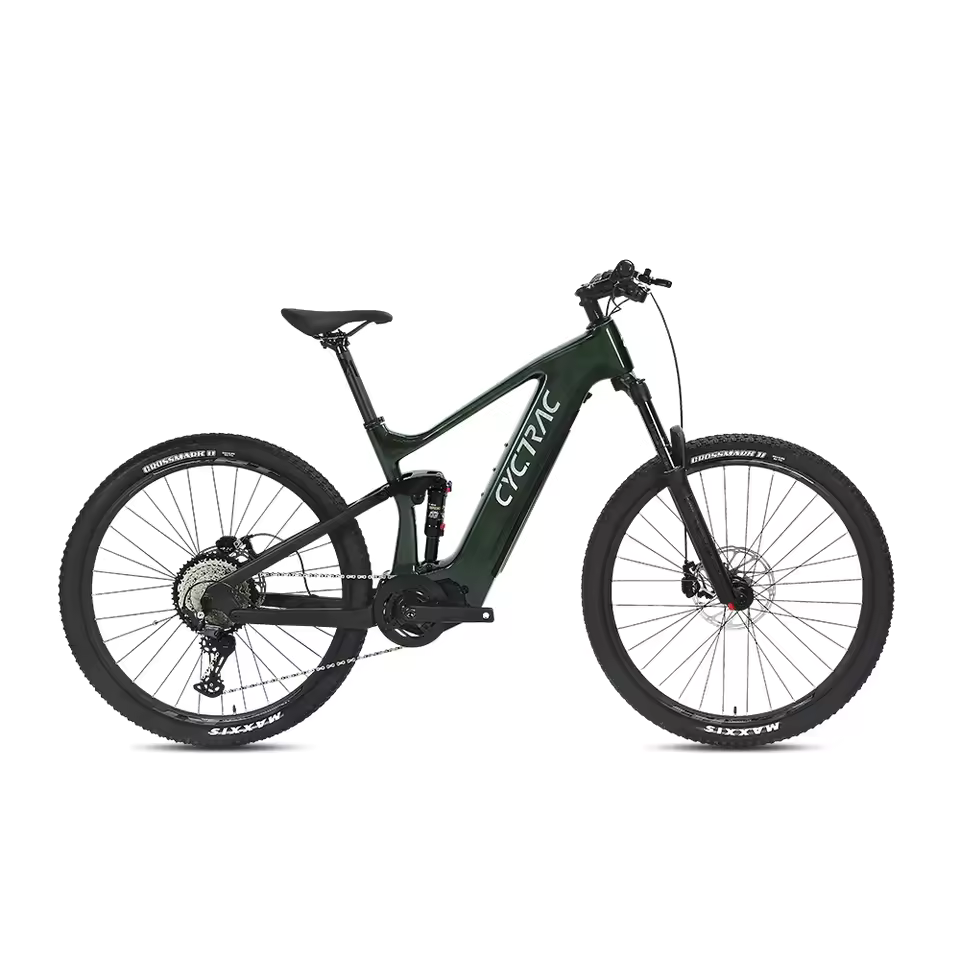

CYCTRAC EM10 - High-Performance Alloy eMTB

The CYCTRAC EM10 series is a top-tier full-suspension electric mountain bike, designed for riders seeking high performance, durability, and power on the trails. Built with a high-modulus Alloy fiber frame, this bike ensures lightweight agility while maintaining exceptional strength. With multiple motor and battery configurations, the EM10 adapts to your riding style and terrain.

---

🚴 **1. EM10 (M510+36V250W) - SHIMANO DEORE**

Frame:
CYCTRAC-EM10, High-Modulus Alloy Fiber, Flat Weld & Smooth, Internal Cables, UDH Tail Hook, Thru-Axle 12*148 Boost, 140mm Rear Travel, DNM Rear Shock 200×55mm

Fork:
RS, Magnesium-Aluminum Alloy, Air Suspension, 150mm Travel, Manual Lockout, Thru-Axle 15*110 Boost

Wheels Size:
29" OR 27.5"

Handlebar:
RS, Aluminum Alloy, Matte Finish, 31.8*720 mm

Groupset:
Shimano DEORE M6100-12S, Rear Derailleur, 12 Speed

Brakes:
TEKTRO-M535, 4-Piston Hydraulic Disc, 203/203 mm Rotors

Tires:
MAXXIS CROSSMARK, 29 OR 27.5 x 2.25"

Motor:
Bafang Mid Drive, M510 (36V250W)

Torque:
95 N.m

Battery:
Samsung 21700 Li-ion, 720Wh, 36V20A

Range:
120–140 KM

Weight:
23.1 KG

Max Load:
130 KG

Waterproof:
IP X6

Charger:
3A, DC2.1 (6–7 Hours Charging Time)

Display:
Bafang C245, LCD Digital Display

---

🚴 **2. EM10 (M560+48V250W) - SHIMANO DEORE**

Frame:
CYCTRAC-EM10, High-Modulus Alloy Fiber, Flat Weld & Smooth, Internal Cables, UDH Tail Hook, Thru-Axle 12*148 Boost, 140mm Rear Travel, DNM Rear Shock 200×55mm

Fork:
RS, Magnesium-Aluminum Alloy, Air Suspension, 150mm Travel, Manual Lockout, Thru-Axle 15*110 Boost

Wheels Size:
29" OR 27.5"

Handlebar:
RS, Aluminum Alloy, Matte Finish, 31.8*720 mm

Groupset:
Shimano DEORE M6100-12S, Rear Derailleur, 12 Speed

Brakes:
TEKTRO-M535, 4-Piston Hydraulic Disc, 203/203 mm Rotors

Tires:
MAXXIS CROSSMARK, 29 OR 27.5 x 2.25"

Motor:
Bafang Mid Drive, M560 (48V500W)

Torque:
130 N.m

Battery:
Samsung 21700 Li-ion, 720Wh, 48V15A

Range:
110–130 KM

Weight:
23.5 KG

Max Load:
130 KG

Waterproof:
IP X6

Charger:
3A, DC2.1 (6–7 Hours Charging Time)

Display:
Bafang C245, LCD Digital Display

---

🔥 **3. EM10 (M510+36V20A HIGH) - SHIMANO DEORE**

Frame:
CYCTRAC-EM10, High-Modulus Alloy Fiber, Flat Weld & Smooth, Internal Cables, UDH Tail Hook, Thru-Axle 12*148 Boost, 140mm Rear Travel, DNM Rear Shock 200×55mm

Fork:
ROCKSHOX-RECON, Air Suspension, 150mm Travel, Manual Lockout, Thru-Axle 15*110 Boost

Wheels Size:
29" OR 27.5"

Handlebar:
KS Adjustable Lifting Handlebar, Hydraulic Remote, 31.6**395*125mm

Groupset:
Shimano DEORE M6100-12S, Rear Derailleur, 12 Speed

Brakes:
TEKTRO-M535, 4-Piston Hydraulic Disc, 203/203 mm Rotors

Motor:
Bafang Mid Drive, M510 (36V250W)

Torque:
95 N.m

Battery:
Samsung 21700 Li-ion, 720Wh, 36V20A

Range:
120–140 KM

Weight:
23.9 KG

Max Load:
130 KG

Waterproof:
IP X6

Charger:
3A, DC2.1 (6–7 Hours Charging Time)

Display:
Bafang C245, LCD Digital Display

---

🔥 **4. EM10 (M560+48V500W HIGH) - SHIMANO DEORE**

Frame:
CYCTRAC-EM10, High-Modulus Alloy Fiber, Flat Weld & Smooth, Internal Cables, UDH Tail Hook, Thru-Axle 12*148 Boost, 140mm Rear Travel, DNM Rear Shock 200×55mm

Fork:
ROCKSHOX-RECON, Air Suspension, 150mm Travel, Manual Lockout, Thru-Axle 15*110 Boost

Wheels Size:
29" OR 27.5"

Handlebar:
KS Adjustable Lifting Handlebar, Hydraulic Remote, 31.6**395*125mm

Groupset:
Shimano DEORE M6100-12S, Rear Derailleur, 12 Speed

Brakes:
TEKTRO-M535, 4-Piston Hydraulic Disc, 203/203 mm Rotors

Motor:
Bafang Mid Drive, M560 (48V500W)

Torque:
130 N.m

Battery:
Samsung 21700 Li-ion, 720Wh, 48V15A

Range:
110–130 KM

Weight:
24.3 KG

Max Load:
130 KG

Waterproof:
IP X6

Charger:
3A, DC2.1 (6–7 Hours Charging Time)

Display:
Bafang C245, LCD Digital Display

🔥 **5. EM10 (M560+48V500W HIGH) - WHEELTOP**

Frame:
CYCTRAC-EM10, High-Modulus Alloy Fiber, Flat Weld & Smooth, Internal Cables, UDH Tail Hook, Thru-Axle 12*148 Boost, 140mm Rear Travel, DNM Rear Shock 200×55mm

Fork:
ROCKSHOX-RECON, Air Suspension, 150mm Travel, Manual Lockout, Thru-Axle 15*110 Boost

Wheels Size:
29" OR 27.5"

Handlebar:
KS Adjustable Lifting Handlebar, Hydraulic Remote, 31.6**395*125mm

Groupset:
Wheeltop EDS OX-12S Wireless

Brakes:
TEKTRO-M535, 4-Piston Hydraulic Disc, 203/203 mm Rotors

Motor:
Bafang Mid Drive, M560 (48V500W)

Torque:
130 N.m

Battery:
Samsung 21700 Li-ion, 720Wh, 48V15A

Range:
110–130 KM

Weight:
24.3 KG

Max Load:
130 KG

Waterproof:
IP X6

Charger:
3A, DC2.1 (6–7 Hours Charging Time)

Display:
Bafang C245, LCD Digital Display

____________________________________________________________________________________________________

🔧 Throttle-Ready: This M560 motor is throttle-compatible. If throttle is selected at checkout or requested in advance, we will ship the bike pre-configured with the dedicated throttle wiring and port.

✅ Where to Place It

Insert this line right after the motor specification in the M560 configuration. For example:

Motor:
Bafang Mid Drive, M560 (48V500W)
Throttle-Ready: This M560 motor is throttle-compatible. If throttle is selected at checkout or requested in advance, we will ship the bike pre-configured with the dedicated throttle wiring and port.

⚖️ EM10 Model Comparison

Feature	M6100-12S / M510 (36V250W)	M6100-12S / M560 (48V500W)	M6100-12S / M510 High (36V250W)	M6100-12S / M560 High (48V500W)	WheelTop 12s / M560 High (48V500W)
Motor	Bafang M510	Bafang M560	Bafang M510	Bafang M560	Bafang M560
Torque	95 N.m	130 N.m	95 N.m	130 N.m	130 N.m
Battery	36V20A	48V15A	36V20A	48V15A	48V15A
Range	120-140 KM	110-130 KM	120-140 KM	110-130 KM	110-130 KM
Groupset	Shimano DEORE M6100-12S	Shimano DEORE M6100-12S	Shimano DEORE M6100-12S	Shimano DEORE M6100-12S	Wheeltop EDS OX-12S Wireless
