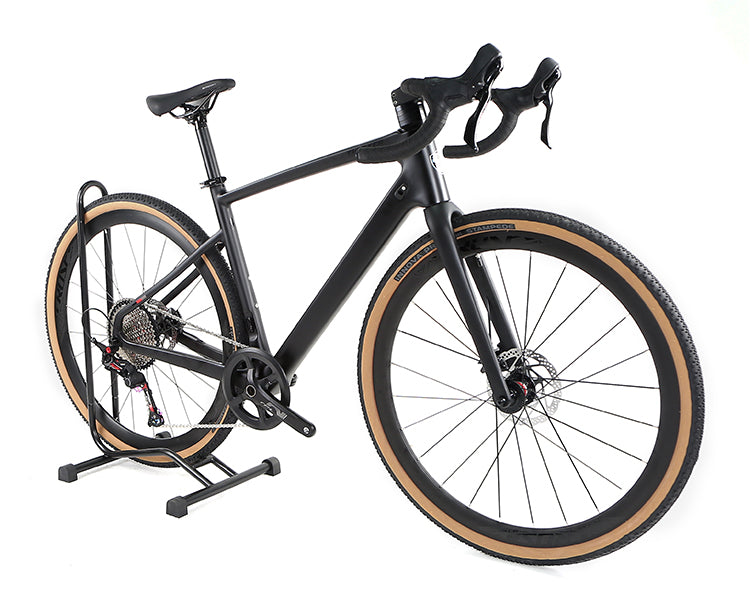

GRAVEL V1 - Carbon Fiber Gravel Bike

The GRAVEL V1 is a high-performance gravel bike available in two distinct configurations RS SENSAH 24-speed and WheelTop GEX-13-speed, RS SENSAH 12-speed designed for riders who crave agility, speed, and durability. Both models feature a lightweight, high-modulus carbon fiber frame and powerful hydraulic disc brakes for superior control and stopping power.

Technical Specifications

Key Components

Wheel Size: 700C
Frame Height: Multiple sizes available
Bike Color: You can choose any color from our catalog
Net Weight: 9.9 kg (with alloy wheels) 9.6 Kg (carbon wheels)

Frame & Structure

Frame: Gravel V1 (Disc & Thru-Axle 12×142), high-modulus carbon fiber, XC design, internal cable routing, matte or gloss finish with UV decals
Fork: Gravel V1 (Disc & Thru-Axle 12×100), high-modulus carbon fiber, 700C
Seat Post: High-modulus carbon fiber, 31.6×350 mm
Clamps: Aluminum alloy, single screw lock (34.9 mm)

Handlebar & Cockpit

Handlebar Set: Integrated carbon handlebar & stem (420×90 mm), full internal cables

Drivetrain


Derailleur Handle	RS (SENSAH HRD6900-R) – 2×12S, hydraulic	RS (SENSAH HRD6900-G) – 1×12S, hydraulic	WheelTop GEX – 1×13S (wireless & hydraulic)
Front Derailleur	RS (SENSAH Z2)	None	None
Rear Derailleur	RS (SENSAH RD8500-GS) – 12S	RS (SENSAH RD8500-SGS) – 12S	WheelTop GEX – 13S (wireless)
Crankset	Alu alloy, Hollow, 34–50T	Alu alloy, Hollow, 42T	Alu alloy, Hollow, 42T
Cassette	12S, 11–32T	12S, 11–42T	13S, 11–46T

Braking System

Brakes: Flat-mount, full hydraulic disc, 160/160 mm rotors

Wheelset & Tires

Rims: AL7005 aluminum alloy, double wall, matte finish, W19×H38 mm × 700C.
Tires: 700×25C or 700×28C (choose at checkout)
Upgrade Option: For a painted, stylish wheel upgrade, create a note during checkout for $40 / Carbon wheel $190

What`s included

PC bottle cage + Tools, TWITTER Manual + Warranty card
