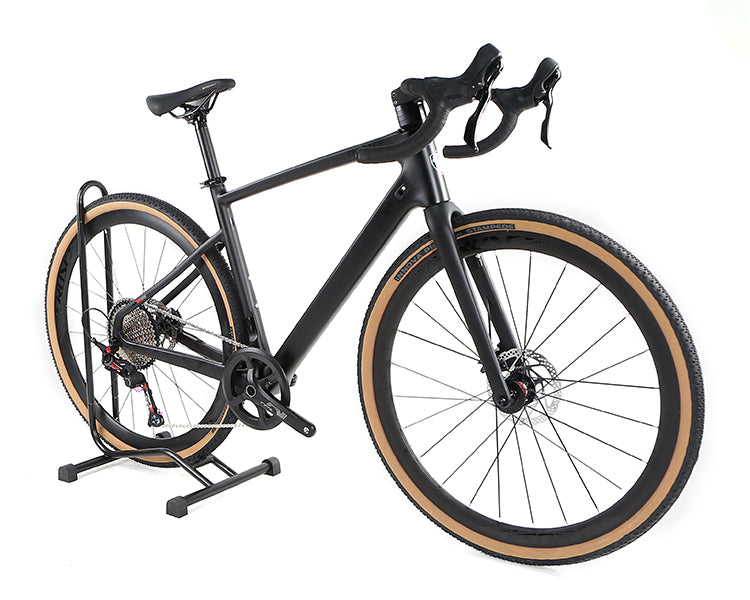

GRAVEL V1 SP - Carbon Fiber Gravel Bike

The GRAVEL V1 SP is a high-performance gravel bike available in two distinct configurations: SRAM RIVAL – 2×11-speed and SRAM APEX – 11-speed, designed for riders who crave agility, speed, and durability. Both models feature a lightweight, high-modulus carbon fiber frame and powerful hydraulic disc brakes for superior control and stopping power.

Technical Specifications

Key Components

Wheel Size: 700C
Frame Height: Multiple sizes available
Bike Color: You can choose any color from our catalog
Net Weight: 10.1 kg (with alloy wheels), 9.9 Kg (carbon wheels)

Frame & Structure

Frame: Gravel V1 (Disc & Thru-Axle 12×142), high-modulus carbon fiber, XC design, internal cable routing, matte or gloss finish with UV decals
Fork: Gravel V1 (Disc & Thru-Axle 12×100), high-modulus carbon fiber, 700C
Seat Post: High-modulus carbon fiber, 31.6×350 mm
Clamps: Aluminum alloy, single screw lock (34.9 mm)

Handlebar & Cockpit

Handlebar Set: Integrated carbon handlebar & stem (420×90 mm), full internal cables

Drivetrain

Derailleur Handle	SRAM RIVAL – 2×11S	SRAM APEX – 11S (hydraulic disc handle)
Front Derailleur	SRAM RIVAL	None
Rear Derailleur	SRAM RIVAL – 11S	SRAM APEX – Long Cage, 11S
Crankset	RS, Alu alloy, Hollow, 34–50T	SRAM APEX – 42T
Cassette	11S, 11–30T	11S, 11–42T

Braking System

Brakes: Flat-mount, full hydraulic disc, 160/160 mm rotors

Wheelset & Tires

Rims: AL7005 aluminum alloy, double wall, matte finish, W19×H38 mm × 700C.
Tires: 700×25C or 700×28C (choose at checkout)
Upgrade Option: For a painted, stylish wheel upgrade, create a note during checkout for $40 / Carbon wheel $190

What`s included

PC bottle cage + Tools, TWITTER Manual + Warranty card
