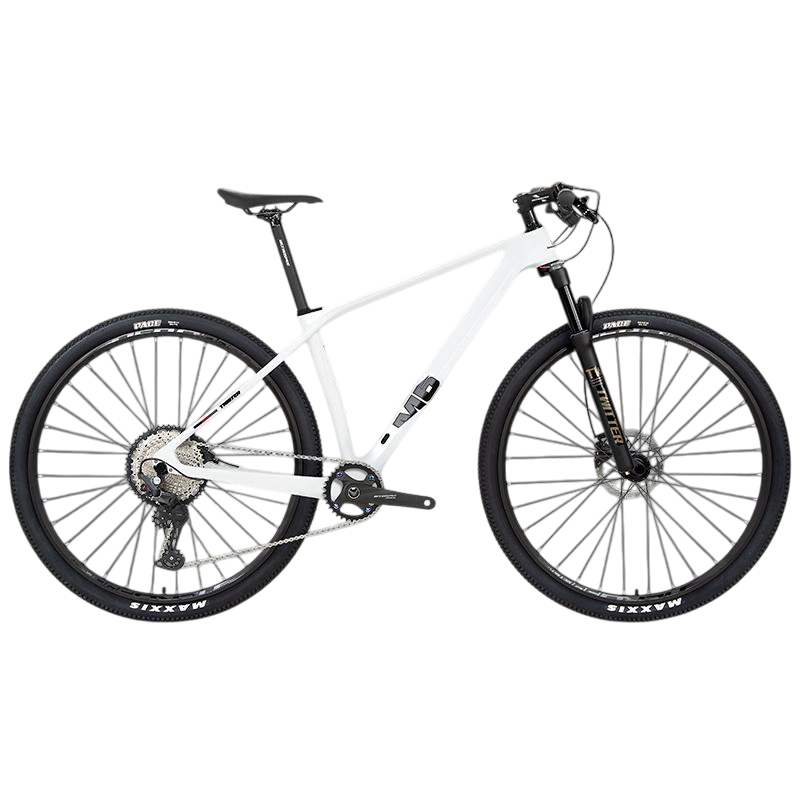

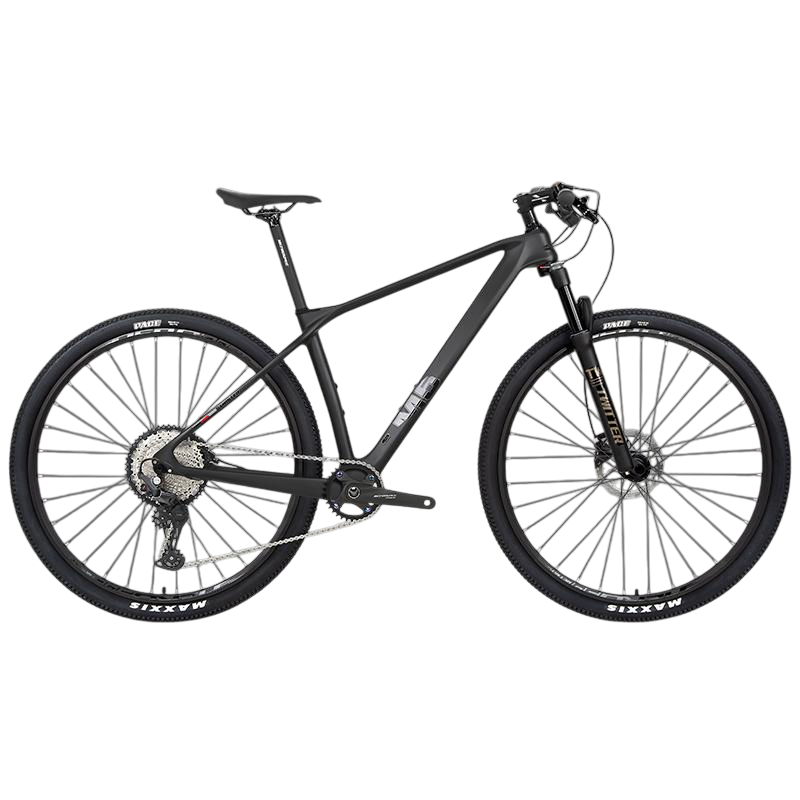

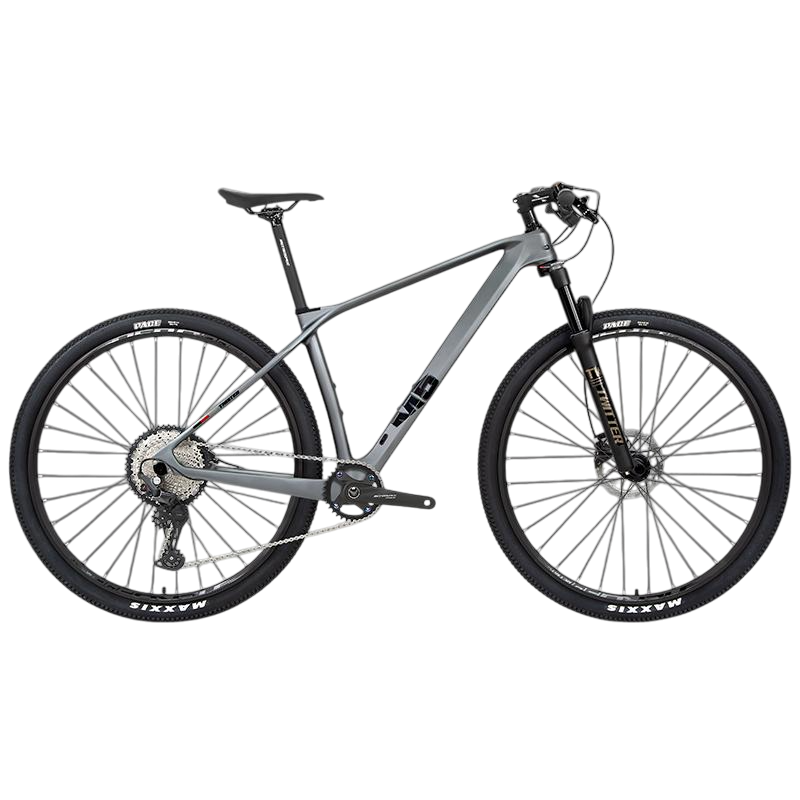

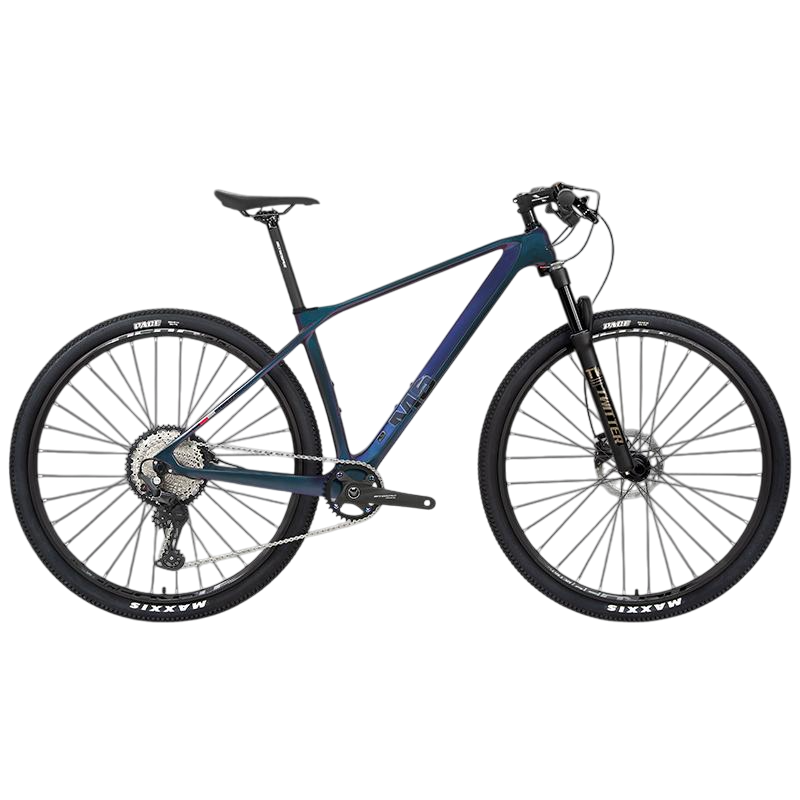

M5 Boost - Carbon Fiber Mountain Bike - Full Hydraulic Disc

The M5 (Boost) is a high-performance cross-country mountain bike built with a high-modulus carbon fiber frame, air suspension fork, and full hydraulic disc brakes. It comes in three drivetrain configurations — Shimano DEORE M6100-12S, WheelTop EDS OX-13S Wireless, and SRAM SX Eagle 12S — giving riders the flexibility to choose between precision, innovation, or robustness. With carbon/alloy hubs, MAXXIS tires, and a sleek Boost setup, the M5 delivers speed, control, and comfort across all terrain.

  Technical Specifications

Key Components

• Wheel Size: 29" (or 27.5" for smaller frames)

• Frame Size: Multiple sizes available

• Bike Color: Choose any color from our catalog

• Net Weight: 12.2 kg


Frame & Structure

• Frame: High-modulus Carbon Fiber, Internal Cable Routing, Thru-axle 12×148 mm, Gloss or Matte Finish, UV Laser Decals

• Fork: TW, Magnesium-Aluminum Alloy, Air Suspension with Remote Lockout, Thru-axle 15×110 mm Boost

• Seat Post: Alu Alloy 31.6×350 mm

• Clamps: Hidden Screw Fit to Frame

Handlebar

•  Alu Alloy 31.8×720 mm, Matte Black Stem 80 mm

 Drivetrain Options

Braking System

• Brakes: SHIMANO MT200 Hydraulic Disc Brakes, 160 mm Rotors (Front & Rear)

Wheelset & Tires

• Rims: RS Double Wall Alu Alloy with Rivets, W25×H21 mm

• Tires: 29×2.1" or 27.5×2.1" (based on frame size)

What’s Included

• PC bottle cage, Tool kit, TWITTER user manual, Warranty card
